Exiting a trade is an art – far more complex than entering one. As traders like to say, “even a monkey can get into a trade, but only a professional can exit with profit.”
A trailing stop is your dynamic guardian that lets profits grow while keeping risks contained. But what’s the better way to trail it – using technical analysis or a mathematical approach? Let’s break it down.
1. Technical Trailing Stop
The technical approach relies on understanding market geometry. Here, the stop‑loss is moved behind meaningful structural “nodes” on the chart. These are the key reference points:
- Swing Highs/Lows: Shifting the stop beyond the previous local low (in a long) or high (in a short).
- Moving Averages (MA): Using a dynamic line, for example, the 21‑day EMA, as a trailing guide.
- Support and Resistance Levels: Moving the stop only after price has firmly broken and held above the next significant level.
- Impulse Candles: Trailing the stop behind strong impulse candles in the direction of the trend.
Pros:
- Logical structure: The stop sits at a point where the market scenario is objectively invalidated if reached.
- Protection by “smart money”: Key technical levels are often defended by large limit orders.
Cons:
- Subjectivity: Two traders may identify a “significant swing low” in completely different places.
- Lag: During strong momentum moves, technical levels may form too infrequently, leaving a large portion of profit unprotected.
2. Mathematical Trailing Stop
The mathematical approach ignores support levels, trendlines, and chart patterns. It relies solely on statistics and the instrument’s volatility. Among the core tools are:
- Fixed percentage or step: The simplest and riskiest method – stop-trail price is set at a fixed distance, such as 1% or 100 points.
- ATR‑based method (Average True Range): Gold standard of the quantitative approach. The stop is set using the average true range of volatility.
ATR trailing stop formula:
Stoplevel= Price- k(ATR(n))
where k is a coefficient (typically 1.1 to 3), and n is the averaging period (typically 14).
Pros:
- Objectivity: Zero emotional influence.
- Volatility‑adaptive: The stop widens when the market becomes turbulent and tightens during calm periods.
- Easy automation: Perfect for algorithmic trading systems.
Cons:
- Blind to market context: Your stop may end up sitting right above a major resistance level, making it vulnerable to a simple fake breakout.
3. Hybrid Approach: ATR + Market Structure
The optimal solution for most instruments is a combination of both methods:
- Use the ATR‑based trailing stop as the minimum constraint: the stop cannot be closer than 1.2 × ATR from the current price.
- Use the structural level as the actual placement point: the stop is set below/above the nearest meaningful swing point, but only if it lies beyond the ATR limit.
- If the structural level is closer than the ATR limit, do not move the stop at all; wait for the next structural point.
Stoplevel= max(ATRtrail, Structurallevel)
(for shorts – use min instead of max)
Pros
- Resistance to manipulation: It’s much harder to knock you out with a fake breakout.
- Logical exit: The position is closed only when the market context truly changes.
Cons
- Calculation complexity: Requires manual monitoring or a more advanced script.
- Increased risk: Because of the “buffer,” the stop may sit slightly farther away than a purely technical one.

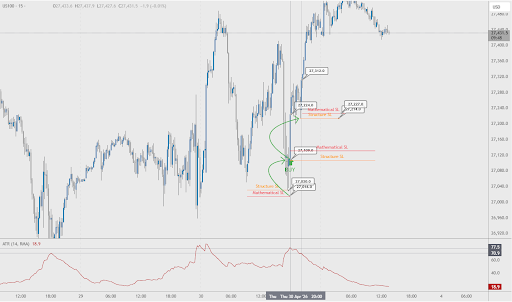

Let’s look at some example of hybrid approach:
For example, you enter a long position after a false breakout within a demand zone on the M15 timeframe for US100.
Your Entry Price Is 27,109. Where Should the Stop‑loss Go?
If you place the stop‑loss structurally, it would sit at 27,030 (below the false breakout), which is a distance of 77 points.
But what does the mathematical ATR stop say?
At the moment of entry, the 14‑period ATR is 77.5.
We take our coefficient of 1.2 (the buffer) and multiply it by 77.5:
1.2 × 77.5 = 93 points
Subtract this from the entry price:
27,109 − 93 = 27,016
This value is below the structural stop, but our rule states that the stop cannot be tighter than the mathematical ATR stop. Therefore, the correct placement is 27,016, which theoretically increases the probability that the stop won’t be taken out by normal volatility.
We’ve Set the Initial Stop‑loss. How Do We Trail the Position Next?
On the next candle, price moves sharply in your favor and closes at 27,224.
The 14‑period ATR remains almost unchanged at 77.5.
Mathematically, we can move the stop to:
Current price 27,224 − (1.2 × 77.5) = 27,131
This is above the entry price (27,109), meaning a breakeven stop. However, structurally, the stop should be placed below the impulse candle’s low – at 27,107. This is below the entry, but this approach respects both volatility and market structure. And a 2‑point stop is dramatically smaller than the original 93‑point stop.
Until a new structural low forms, we do not move the stop‑loss, because we need the combination of structure + ATR.
A Few Candles Later…
Price continues rising and closes at 27,312, forming a new structural low.
Now we recalculate the stop‑loss:
Mathematically, it must be no tighter than 1.2 × current ATR(14)
ATR has dropped to 70.9
- 1.2 × 70.9 = 85 points
New mathematical stop:
- 27,312 − 85 = 27,227
- Structurally, the stop should be placed below the new swing low – 27,214
Therefore, we move the stop‑loss to 27,214, which respects both structure and ATR.
This is how you can trail positions until your take‑profit target is reached or until price hits your trailing stop.
Final Thoughts
If you trade systematically and across many instruments, choose the mathematical method (ATR). It will save your nerves and ensure consistency in your results.
If you are a discretionary trader who works deeply with only a few assets, your choice is the technical trailing stop. It allows you to squeeze the maximum out of a trend by understanding exactly where the crowd will start to panic and close positions.
The hybrid approach is the “highest level” of position management. It allows you to combine the objectivity of volatility with the logic of price action, minimizing a trader’s biggest fear: when a stop gets taken out by a candle’s wick right before price shoots in the intended direction.
